Metric Super-Corrosion-Resistant 316 Stainless Steel Serrated Hex Flange Nuts

Product Description:

These flange nuts have excellent resistance to chemicals and can be used in saltwater environments. A flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. They may be mildly magnetic. Height includes the flange.

Product Mechanical Requirements:

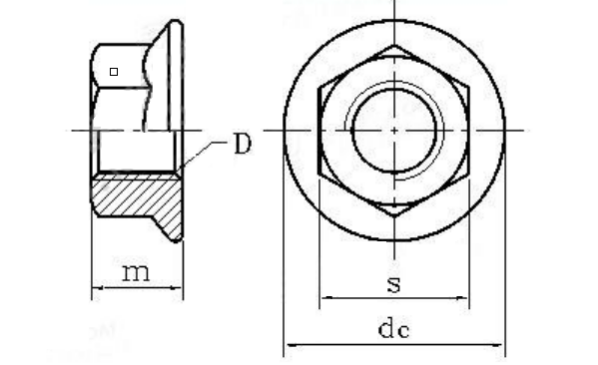

Product Drawing:

Hexagon nuts with flange
DIN 6923-1983
d(mm)	p(mm)	dc(mm)	m(mm)		s(mm)
		max	min	max	min	max
M5	0.8	11.8	4.7	5	7.78	8
M6	1	14.2	5.7	6	9.78	10
M8	1/1.25	17.9	7.6	8	12.73	13
M10	1/1.25/1.5	21.8	9.6	10	14.73	15
M12	1.25/1.5/1.75	26	11.6	12	17.73	18
M14	1.5/2	29.9	13.3	14	20.67	21
M16	1.5/2	34.5	15.3	16	23.67	24
M20	1.5/2.5	42.8	18.9	20	29.67	30

Product Features:

Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.

Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.

Testing Equipment:

Packing:

Jiangyin XiangGu Hardware Products Co., Ltd. is located in Wuxi City and close to Shanghai Port, with convenient transportation.

Our company handles all kinds of fasteners such as bolts, nuts and washers made of stainless steel, carbon steel and copper.

Xianggu Hardware is committed to integrating the superior supply chain system of various fastener products, focusing on the salesman's mastery of fastener expertise, providing fastener system solutions.

We are willing to become your partner with first-class product quality,first-class service level and competitive price.

Main products:

Stainless steel 18-8,A2-70, A4-70 and A4-80 Hex head bolts,Hex socket head bolts and nuts.

Carbon steel and Alloy steel Hex head cap screws,Hex socket head screws, machine screws, self-tapping screws, Hex flange bolts and Structural bolts with coating Hot-dip galvanized, Dacromet, Blue-white zinc,Yellow zinc.

Product Application Areas:

Our fasteners are widely used in automobiles, ships, wind energy, solar energy, boiler, electronic appliances, machinery and equipment, and construction engineering.
